ReachMaster User Interface¶

The primary graphical user interface used to control and run experiments.

Example:

From terminal:

$ python reach_master.py

Todo:

Create executable
Automate unit tests

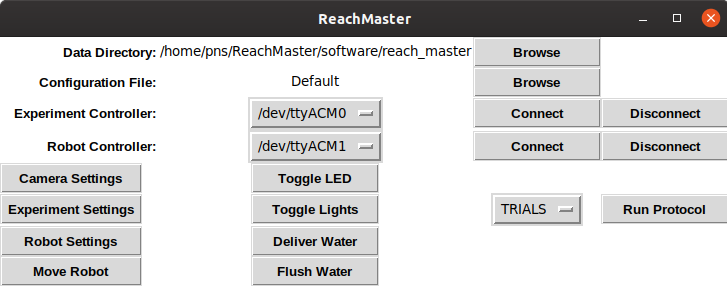

Root Application Window¶

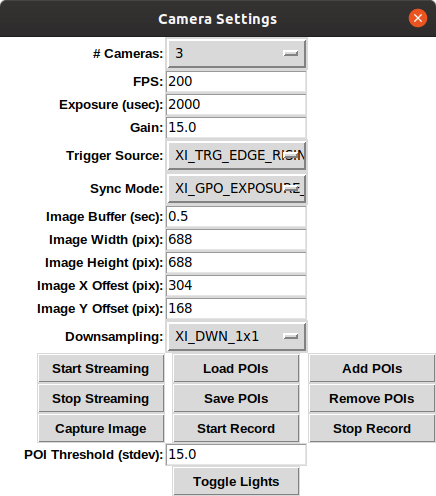

Camera Settings¶

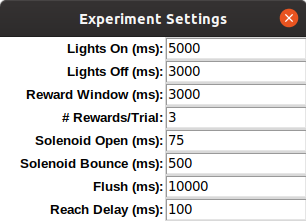

Experiment Settings¶

The experiment settings window is opened as a child of the ReachMaster root application. It allows the user to set any experiment parameters required by the experiment microcontroller (e.g., number/size of rewards, trial delays, etc.).

class reachmaster.settings.experiment_settings.ExperimentSettings(parent)[source]¶

The primary class for the experiment settings window.

config¶

The current configuration settings for the application

Type: dict

lights_on_dur¶

Tkinter StringVar that captures the user-selected duration (ms) lights should remain on during a trial when protocol type is ‘TRIALS’. If a reach is not detected in under this duration, the lights will turn off until the next trial is intitiated.

Type: instance

lights_off_dur¶

Tkinter StringVar that captures the user-selected duration (ms) lights should remain off between trials when prtocol type is ‘TRIALS’.

Type: instance

reward_win_dur¶

Tkinter StringVar that captures the user-selected duration (ms) for which rewards rewards are delivered once the handle is successfully pulled into the reward zone.

Type: instance

max_rewards¶

Tkinter StringVar that captures the user-selected maximum number of rewards (int) delivered for a successful reach.

Type: instance

solenoid_open_dur¶

Tkinter StringVar that captures the user-selected solenoid open duration (ms) which sets the individual reward size. Solenoid calibration must be performed to get the mapping from duration (ms) to volulme (mL).

Type: instance

solenoid_bounce_dur¶

Tkinter StringVar that captures the user-selected minimum duration (ms) the solenoid should remain closed between reward deliveries. Note the redundancy with reward_win_dur and max_rewards.

Type: instance

flush_dur¶

Tkinter StringVar that captures the user-selected duration (ms) the solenoid should remain open while flushing the lines.

Type: instance

reach_delay¶

Tkinter StringVar that captures the user-selected minimum duration animals are required to wait before attempting a reach after a trial is initiated when protocol type is ‘TRIALS’. Once the lights turn on, if a reach is attempted before the end of the delay, the trial is haulted and the lights are turned off. This enforces a timeout period to discourage animals from performing reaches between trials.

Type: instance

on_quit()[source]¶

Called prior to destruction of the experiment settings window.

Prior to destruction, the configuration file must be updated to reflect the change in settings.

Robot Settings¶

The robot settings window is opened as a child of the ReachMaster root application. It allows the user to set any parameters required by the robot microcontroller (e.g., position smoothing, valve periods etc.), or having to do with the robot kinematics. It provides options for the user to select previously generated calibration and position command files. Soon it will allow users to run a robot calibration routine from within the ReachMaster application.

Todo:

Add labels to specify the microcontroller/kinematics parameters
Run calibration callback
Re-add load calibration callback?
Automate unit tests

class reachmaster.settings.robot_settings.RobotSettings(parent)[source]¶

The primary class for the robot settings window.

Configures and provides window callback methods. Also provides methods to select robot calibration files, position command files, as well as methods used to sample positions from the command file. The on_quit() method is called prior to application destruction.

config¶

The current configuration settings for the application

Type: dict

pos_smoothing¶

Tkinter StringVar that captures the user-selected position smoothing parameter (0-1, 0 less smoothing).

Type: instance

tol¶

Tkinter StringVar that captures the user-selected tolerance (bits) for accepting robot convergence to the command position. (i.e., the L2-norm of the potentiometer readings must be less than tol).

Type: instance

period¶

Tkinter StringVar that captures the user-selected valve period (us). Equivalent to pulse width modulation (PWM) period.

Type: instance

off_dur¶

Tkinter StringVar that captures the user-selected minimum off duration (ms) that is enforced between convergence times. Once the robot converges to a command position, it will not move to a new command position for this duration.

Type: instance

num_tol¶

Tkinter StringVar that captures the user-selected number of consecutive periods the robot must be within convergence in order to be considered “in position”.

Type: instance

(x/y/z)_(push/pull)_wt

Tkinter StringVar that captures the user-selected weighting coefficient placed on the x/y/z actuator in the push/pull direction. Acts as a gain on the calibration coefficients. Typically defaults to 1 for a good calibration, but gives the user an option to make quick manual adjustments without runnning an entirely new calibration. Not used very often in practice.

Type: instance

rew_zone_x¶

Tkinter StringVar that captures the user-selected minimum x position (bits) the handle must cross in order to enter the reward zone.

Type: instance

rew_zone_(y/z)_(min/max)¶

Tkinter StringVar that captures the user-selected min/max x/z positions (bits) the handle must be within in order to be located in the reward zone. Conditions must be satisfied on all actuators simultaneously.

Type: instance

calibration_file¶

Tkinter StringVar that captures the user-selected robot calibration file.

Type: instance

command_file¶

Tkinter StringVar that captures the user-selected position command file.

Type: instance

command_type¶

Tkinter StringVar that captures the user-selected option determining how commands are generated. Can be read_from_file, sample_from_file, or parametric_sample. The read_from_file option takes the commands directly from the command file. The sample_from_file option generates a sequence of commands by sampling from the command file with replacement. The parametric_sample option does not use the command file. Rather, it samples commands uniformly from the reach volume determined by user-selected inverse kinematics parameters.

Type: instance

(y/z)gimbal_to_joint

Tkinter StringVar that captures the user-measured center-to-center distance (mm) from an y/z gimbal to its respective spherical joint (link to hardware page).

Type: instance

(x/y/z)gimbal_(x/y/z)offset

Tkinter StringVar that captures the user-measured offset (mm) of the (x/y/z) gimbal from the origin in the (x/y/z) direction.

Type: instance

(x/y/z)_origin

Tkinter StringVar that captures the user-measured (x/y/z) position (bits) of the origin.

Type: instance

reach_dist_(min/max)¶

Tkinter StringVar that captures the user-specified (min/max) reach distance of the reach volume.

Type: instance

reach_angle_max¶

Tkinter StringVar that captures the user-specified max reach angle (rad) of the reach volume.

Type: instance

calibration_browse_callback()[source]¶: Allows the user to select a calibration file to be loaded to the robot microcontroller.

command_browse_callback()[source]¶: Allows the user to select a position command file to be loaded to the robot microcontroller.

on_quit()[source]¶

Called prior to destruction of the robot settings window.

Prior to destruction, the configuration file must be updated to reflect the change in settings.

run_calibration_callback()[source]¶: Not yet implented. Should load the robot calibration script to the robot microcontroller along with any relevant arguments, run all calibration routines, and produce a calibration file.

Protocols¶

Camera Interface¶

Experiment Interface¶

This module provides a set of functions for interfacing with the experiment microcontroller. It provides functions to recognize and establish serial connections to the controller, read/write settings, execute common callbacks located in the other modules, and read/write custom messages.

Todo:

Object orient
Automate unit tests
Limit custom messages by absorbing communication codes from protocols module

reachmaster.interfaces.experiment_interface.deliver_water(exp_controller)[source]¶

Send a message to experiment controller to open the solenoid for the user-selected reward duration.

Parameters: exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.

reachmaster.interfaces.experiment_interface.flush_water(exp_controller)[source]¶

Send a message to experiment controller to opens the solenoid for the user-selected flush duration.

Parameters: exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.

reachmaster.interfaces.experiment_interface.get_ports()[source]¶

List all serial port with connected devices.

Returns: port_list – Names of all the serial ports with connected devices.
Return type: list(str)

reachmaster.interfaces.experiment_interface.move_robot(exp_controller)[source]¶

Send a message to experiment controller to command the robot to move to the next position in its command sequence.

Parameters: exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.

reachmaster.interfaces.experiment_interface.read_response(exp_controller)[source]¶

Read a line of data from the experiment controller in response to the most recently written message.

Parameters: exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.
Returns: response – The line of data received from the experiment controller in response to the most recently written message.
Return type: str

reachmaster.interfaces.experiment_interface.set_exp_controller(exp_controller, config)[source]¶

Load the experiment settings to the experiment controller.

Parameters

exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.
config (dict) – The currently loaded configuration file.

reachmaster.interfaces.experiment_interface.start_experiment(exp_controller)[source]¶

Send a message to experiment controller to begin executing an experiment protocol.

Parameters: exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.
Returns: response – The first line of data received from the experiment controller verifying that the protocol has been initiated.
Return type: str

reachmaster.interfaces.experiment_interface.start_interface(config)[source]¶

Establish a serial connection with the experiment controller.

Parameters: config (dict) – The currently loaded configuration file.
Returns: exp_controller – The serial interface to the experiment controller.
Return type: serial.serialposix.Serial

reachmaster.interfaces.experiment_interface.stop_interface(exp_controller)[source]¶

Perform a soft reboot of the experiment controller and close the serial connection.

Parameters: exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.

reachmaster.interfaces.experiment_interface.toggle_led(exp_controller)[source]¶

Send a message to experiment controller to toggle the LED located on the robot handle.

Parameters: exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.

reachmaster.interfaces.experiment_interface.toggle_lights(exp_controller)[source]¶

Send a message to experiment controller to toggle the neopixel lights.

Parameters: exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.

reachmaster.interfaces.experiment_interface.trigger_image(exp_controller)[source]¶

Send a message to experiment controller to trigger the cameras to capture an image.

Parameters: exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.

reachmaster.interfaces.experiment_interface.write_message(exp_controller, message)[source]¶

Read a line of data from the experiment controller in response to the most recently written message.

Parameters

exp_controller (serial.serialposix.Serial) – The serial interface to the experiment controller.
message (str) – A string that is recognizeable by the experiment controller.

Robot Interface¶

Configuration Files¶

Module for working with configuration files.

Configurations files are json files that store all the settings used in a ReachMaster session. Functions are provided to generate default configuration files, as well as to save and load previous configurations. This encourages persistence of settings across experiments.

reachmaster.config.default_config()[source]¶

Generate a configuration populated with sensible defaults.

Returns: A default configuration.
Return type: dict

reachmaster.config.load_config(file_handle)[source]¶

Load a configuration file.

Typically loads a file selected by user from the configuration browser in the root ReachMaster application window.

Parameters: file_handle (file) – An open, previously saved json configuration file.
Returns: A default configuration.
Return type: dict

reachmaster.config.save_config(config)[source]¶

Save a configuration file.

This is typically called upon closing application if the user responds yes to the save prompt. The configuration is given the current datetime as a name and saved to a json in the config folder of the user-selected data output directory.

Parameters: config (dict) – The currently loaded configuration.

reachmaster.config.save_tmp(config)[source]¶

Save the configuration to a temp file.

The global state of ReachMaster is tracked using a temp file. Whenever a child window of the main application is created or destroyed, the temp file is updated to reflect whatever changes in settings may have occurred. If the user forgets to save the configuration file at the end of a session, this temp file can be used for recovery. It is saved to the temp folder in the ReachMaster root directory. Warning: the temp file is reset to the default configuration whenever a new instance of ReachMaster is started!

Parameters: config (dict) – The currently loaded configuration.
